Double Power Wall USB Charging Socket For Mobile Phone Ul94v 0 Flammability Rating

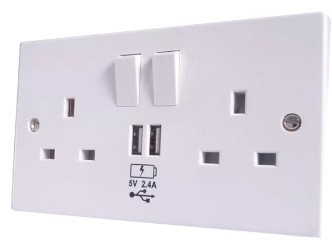

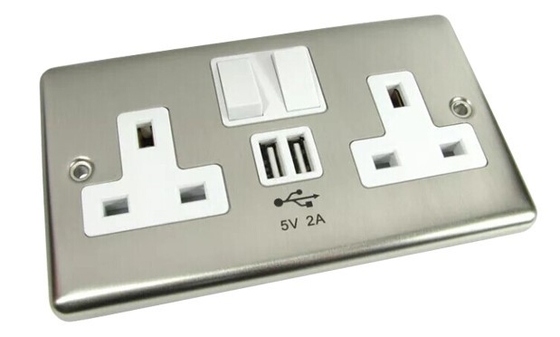

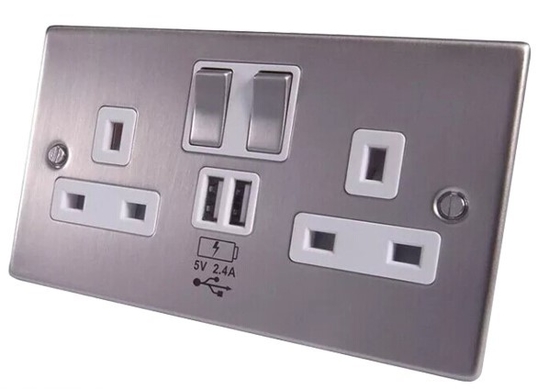

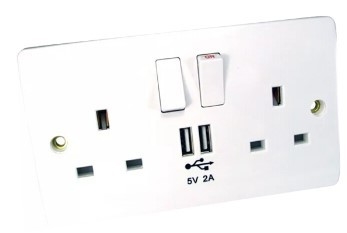

13A 2-Way UK plug Double Power Wall Socket Face Plate Plug Socket with 2 USB phone charging port

Product Features:

1). Passed CE,RoHS,certificates.

2). LG Brand Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.

3). Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6- 0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, more than ten Years no any looseness..

4). Based on Surge design, Lightning strike, Over-Voltage And Over Current Protection.

5). Built-In high Proformance intelligent IC charging module ,which has Over

Current / Voltage and short circuit Protection. Two USB Ports can auto identify the Loading . So as to

ensure the charging quality & Extend the Battery life.

6). Over 8 Hrs Burning Testing And USB Passed 3000V Safety Testing to Ensure the product quality.

Application:

Installation Procedure and Attention:

Step 1, Cut off AC power, open the USB socket outlet faceplate, take down 2 screws with screw driver.

Step 2, According the connection diagram to wiring well: Plug the Red, Blue and Green wires into L,N, E holes separately and then lock it tightly with screw driver.

Step 3, Flat place onto 86 type base socket, and screw tight two screws with screw driver, Close the

faceplate of USB socket.

Step 4, AC power on, to check the function of USB ports, connect mobile phone via USB cable into USB port, the phone will detect the USB connection.

Step 5, Connect USB charger to smart products, the indicated LED onto smart products will be

illuminated, the battery show charging logo is normal, if no charging logo show out, please

double check the connection or change another USB cable to try. After battery is charged fully,

the indicated LED will be off.

Quality Control:

100% of the products will be tested before shipping, and all must pass all these QC procedures before the packing.

​Specification
